Punch Press Stamping Services
(click on thumbnail to enlarge)
Punch Press Stamping is the various press forming operations in coining, embossing, blanking, and pressing strip, sheet, or coil material between stamping dies. At low manufacturing costs, these machines can process metals and plastics in high volumes.
Loyal Manufacturing Corporation's Punch Press Service has provided its customers with precision metal stampings since 1975. Utilizing air-clutch & mechanical OBI presses, Loyal Manufacturing can provide high volume, repeatable products. Our presses range from 10-ton up to 113-ton and we have an assortment of uni-punches, cut-off and radius dies in inventory. We can produce products from customer supplied tooling (bed sizes up to 19" x 38") or can manufacture customer specific tooling as required. These presses can be fed manually with strip, bar, or angle or pneumatically (Rapid Air FX6 & FX12 air feeds) with coil up to 8" in width. Our dedicated and experienced employees strive for "Total Customer Satisfaction" and "On Time Shipping" in every part produced. Over the years many types of material have been stamped such as carbon (mild) steel, coated carbon steel, aluminum, copper, brass, stainless steel, & plastic (including printed circuit boards). Refer to the "Materials Processed" section of this page for specific materials/grades.
Following completion of all customer parts, each process is analyzed to insure maximum efficiency in our manufacturing methods. Whether we are supporting the development of a unique prototype, small runs or large runs, we have the experience to suit most any need. Our goal is to find the most efficient solutions possible to maximize the value of the products supplied to our customers.
Refer to the machine specifications listed below, to see our capabilities and how we can support your fabrication needs.
Use the "Request Information" button to contact us, and attach your design documentation for our Engineering Department to review. Then work with our Engineering Department to confirm your design requirements and receive your quote.
Punch Press Stamping Capabilities
- Punch Press Machines
-
Mechanical & Air Clutch Punch Press Stamping Machines:
OBI Punch Presses: (10 Ton, 45 Ton, 60 Ton, 90 Ton and 113 Ton)
Whitney (Model 130): 10 Ton
L&J (Model 36): 20 Ton
Johnson (Model 5): 45 Ton
(2) USI Clearing (Model P-701 Torc Pac): 60 Ton

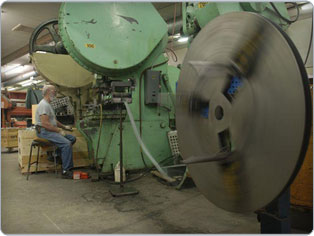

Verson (Model 7): 90 Ton
Toledo (Model 78): 113 Ton
- Materials Processed
-
Carbon (mild) steels: (cold rolled, hot rolled, hot rolled pickled and oiled, draw quality)A36, C1018, 12L14, & schedule 40 in tube, pipe, bar, angle, coil, & sheet
Galvanized and galvannealed coated carbon steel in sheet & coil
Aluminum 3003H14, 5052H32, 6061T6, 6063T5, in sheet, tread plate, bar, tube, coil, extrusion, & angle
Aluminized sheet
Stainless steel 301, 304, 310, & 316 w/ #4 & 2B finishes in sheet, bar, tube, & coil
Brass alloy 260 and 110 copper in sheet, bar & tube
Plastic, lexan, & delrin in sheet
(But not limited to, contact us for other inquiries)
- Industries Served
-
- Climate Control Enclosures
- Commercial Furniture Brackets & Shelves
- Commercial TV custom vesa brackets LCD / LED / Plasma
- Custom Carrying Cases
- Custom OEM Circuit Board Enclosures
- Education Audio/Video Equipment
- Electric Motor Bases
- Electrical Enclosures & Panels
- Food Service Industry Brackets, Enclosures, etc
- Furnace & Air Conditioning Brackets, Panels, etc
- Health & Beauty - tanning bed components & brackets
- Industrial Lighting brackets HID / LED
- Industrial Plumbing Valve Enclosures
- Medical Devices
- Military Brackets & Enclosures
- Pet Supply Brackets & Enclosures
- POP Cash Storage Cabinets
- Printed Circuit Boards
- Public Utility Safety Testing Devices
- Safe & Vault Brackets
- Security Equipment & Devices
- Specialty Fasteners/Brackets
- Transportation Safety
